DT&I 18100-18249 ACF Boxcar


History

The 18100-18249 series boxcars were built by AC&F in June 1964. The majority were used to transport auto parts to and from plants on the DT&I although some were reassigned to paper service around 1980. Changes in AAR mechanical designation and interior fittings were numerous during the cars' lifetime. A few of the cars still exist today in company service for CN/IC.

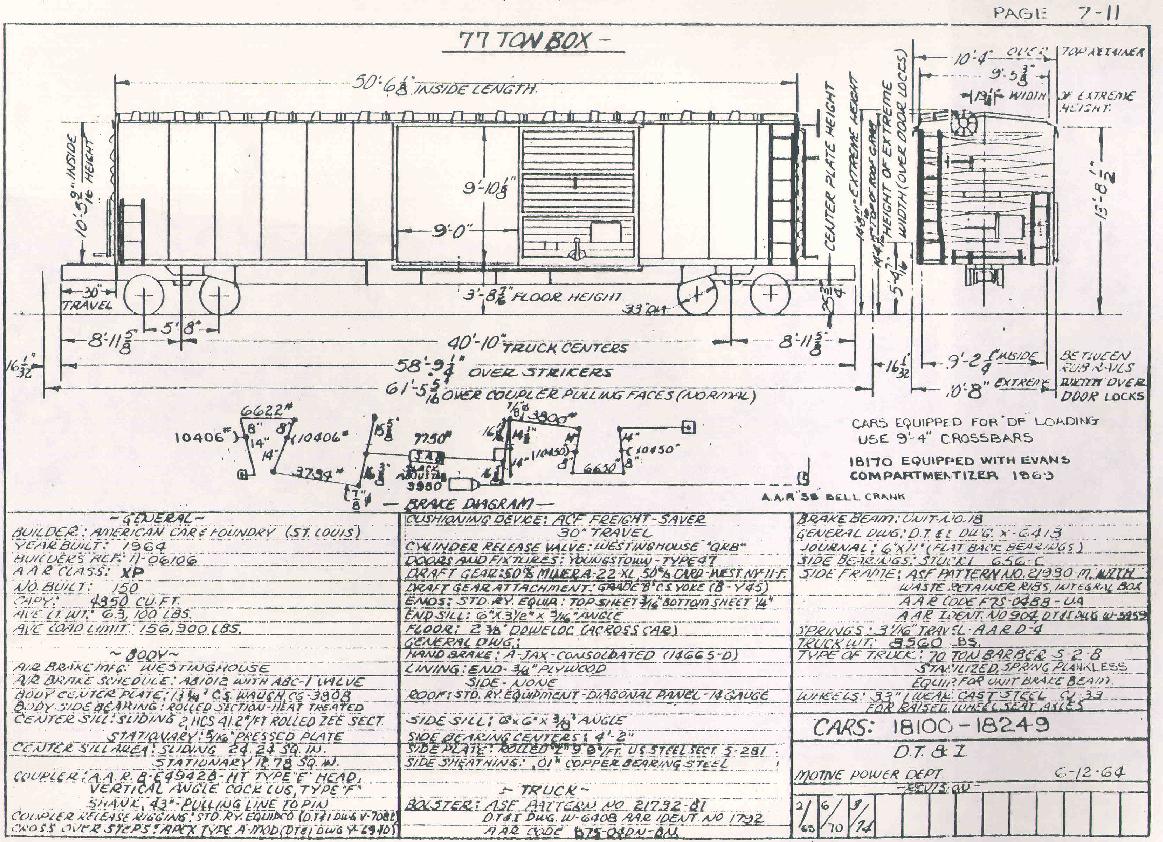

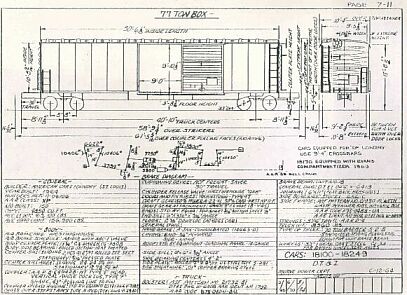

DT&I equipment diagram for the 18100-18249 series boxcar. Click to view a larger version (263k).
Diagram courtesy of Brian Everett

If you have additional information, corrections, photos, or diagrams you would like to have added to this page, please e-mail me.


Revenue Service Info


Type of Service/ORER 10-64 10-67 10-69 7-70 10-71 7-72 4-74
1-79
 10-81 1-85 10-94 1-96 10-97
'XAP' Auto Parts Service 8 10 - - - - -
-
 - - - - -
'XL' DF Equip, Chemical Prods. - - - - - - - 8 - - - - -
'XL' DF Loader Equip. - - 3 3 - - -
13
 21 25 2 1 -
'XL' DF Misc. Auto Pts. - - - - - - -
2
 3 - - - -
'XL' Movable Bulkhead - - - - - - -
1
 1 - - - -
'XL' Paper Service - - - - - - -
1
 1 - - - -
'XM' - - - - 41 41 88?
60
 55? - 1 - -
'XM' Paper Service - - - - - - -
-
 - 47 - - -
'XMP' W/Steel Fixtures 142 140 - - - - -
-
 - - - - -
'XP' Auto Parts Service - - 144? 144? 103? 103? 8
-
 2 40 - - -
'XP' DF Equipment - - - - - - 23
-
 - - - - -
'XP' Non-General Comm. - - - - - - -
23
 20 - - - -
'XP' W/Interior Fixtures - - - - - - 20
-
 - - - - -
'XP' Shipper's Tote Bins - - - - - - -
12
 3 - - - -
'XP' Transmissions - - - - - - -
21
 3 - - - -
'XP' Paper Service - - - - - - -
2
 32 - 3 3 -
Total in Service 150 150 148? 148? 148? 148? 139?
143?
 141? 112 6 4 0

Clicking on the underlined numbers brings up a list of which individual cars
were assigned to that service at that time.

ORER data courtesy Scott Heiden, Bernd Schroeder, Michael Schwiebert


Prototype Photographs

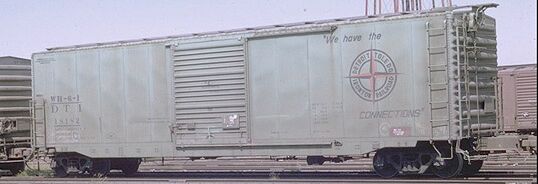

DT&I 18182 @ 1 Av & 45 St Brooklyn NY 6-29-69    Photo by Joseph Testagrose

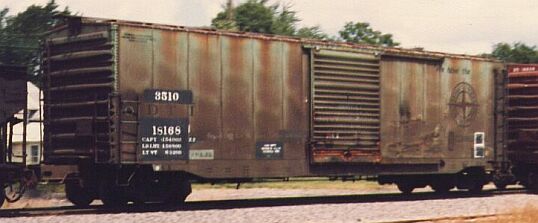

DT&I 18168 @ Maybee MI August 1981       Photo by Scott Heiden

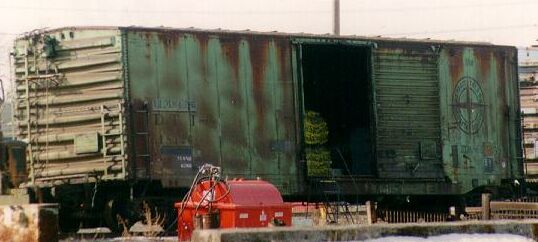

DT&I 18126 @ Pontiac MI February 1998 (In M/W Service)  Photo by R. DeClerg,
Collection of Brian Everett



Modeling the Car

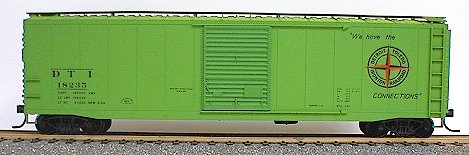

Brian Everett arranged for Accurail to produce a custom decorated model of the 18100 series boxcar. Click on the picture to find out more about the car.
