Thrall 52' 6" Steel Gondolas
9600-9799

by permission with credit to original photographers and contributors

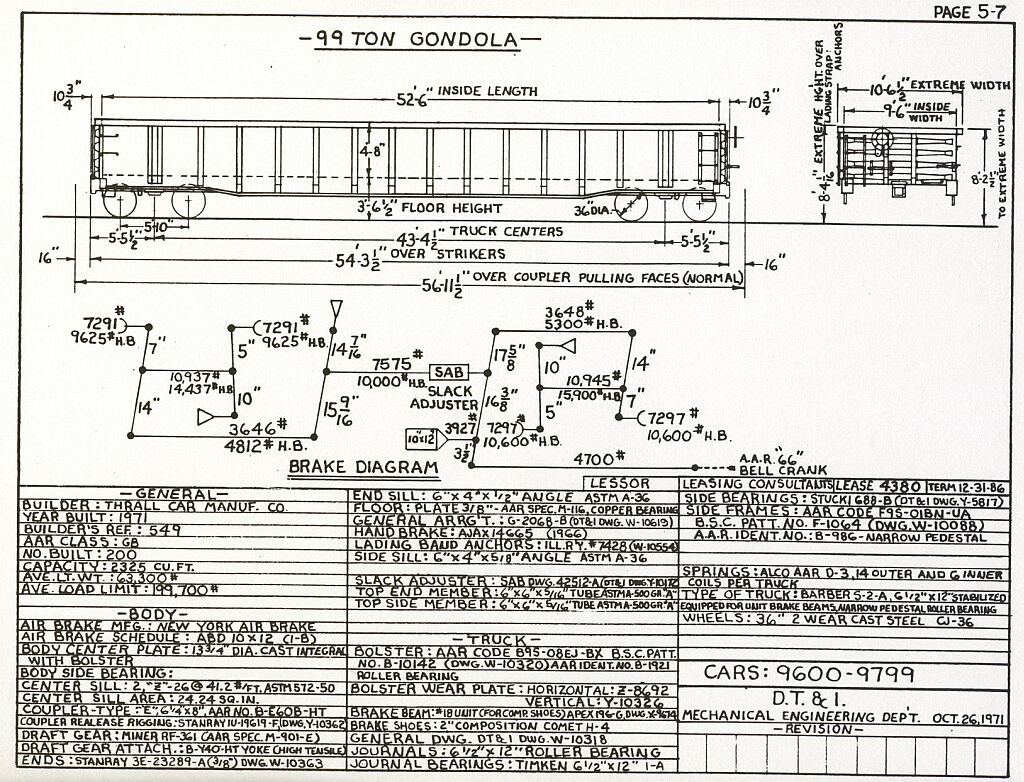

Equipment diagram courtesy Greg McDonnell
Thrall Car Manufacturing Co. delivered 200 52' 6" gondolas to the DT&I in October/November 1971. Although a few were sold to Conrail in the mid-80's, most of these cars are still in revenue service for CN/IC today carrying scrap steel or working in MOW service.


B End Side			A End Side	B End

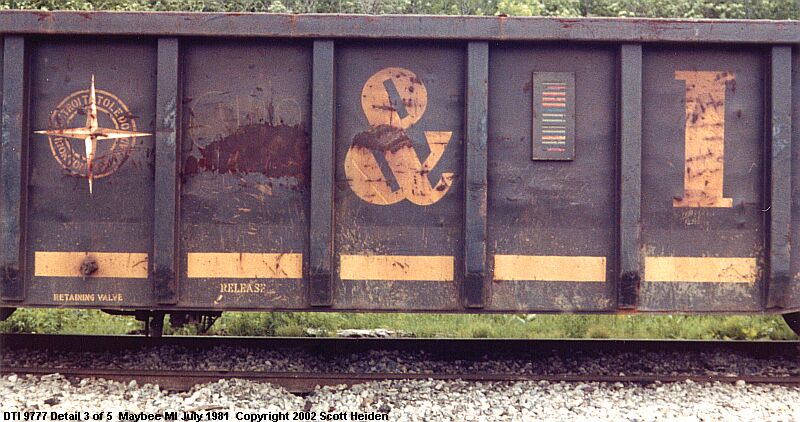

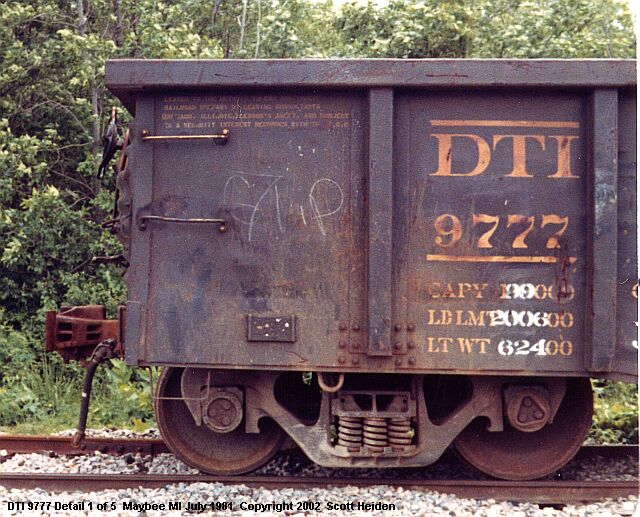

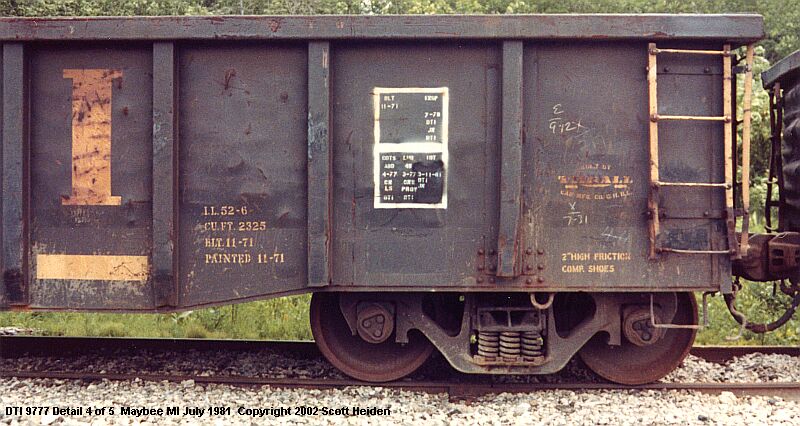

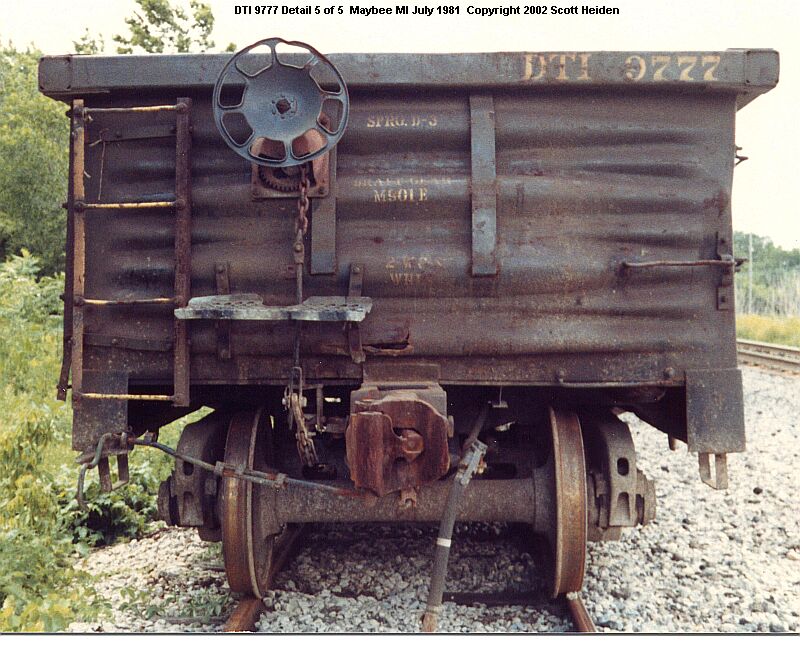

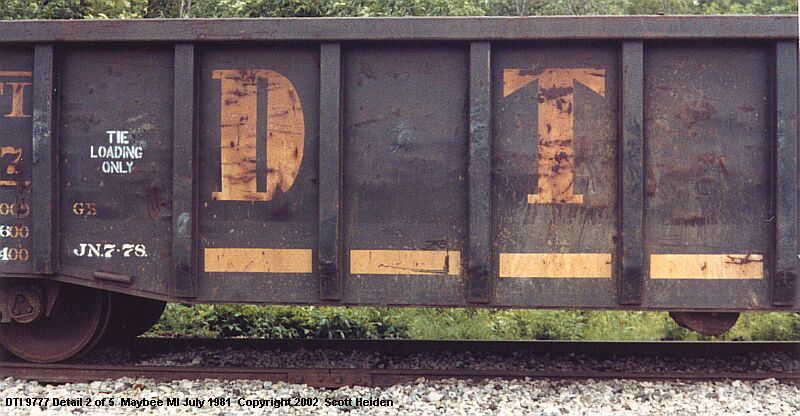

I took these pictures of 9777 in company service on the Maybee Team Track in July 1981.

The ends of several of the remaining cars were rebuilt sometime in the 1990's.

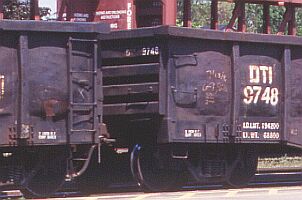

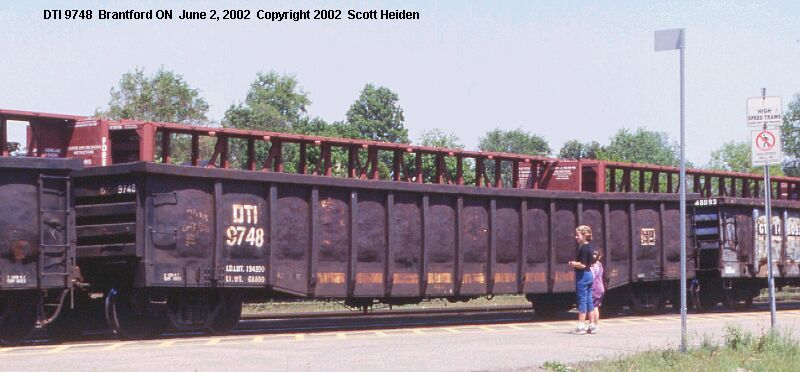

DTI 9748 and another 9600: Brantford ON June 2002
Outside of the reporting marks and car data, the cars still wear the same coat of paint they were delivered with (what's left of it!).

Here are some additional shots of the cars:

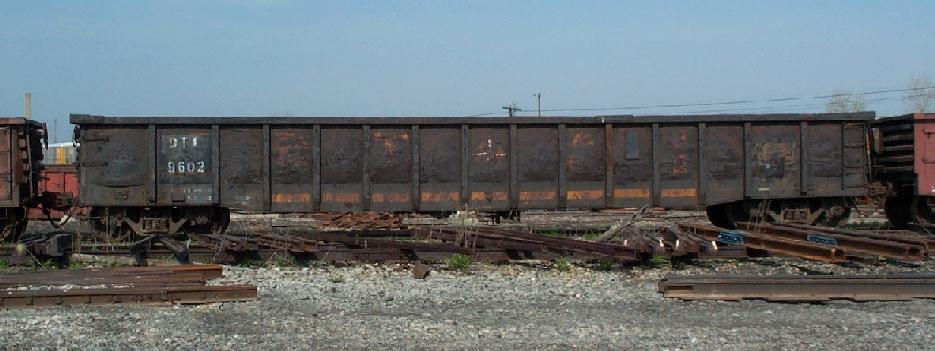

			DTI 9602 @ Flat Rock MI? 1990's Collection of Brian Everett		file size 54k

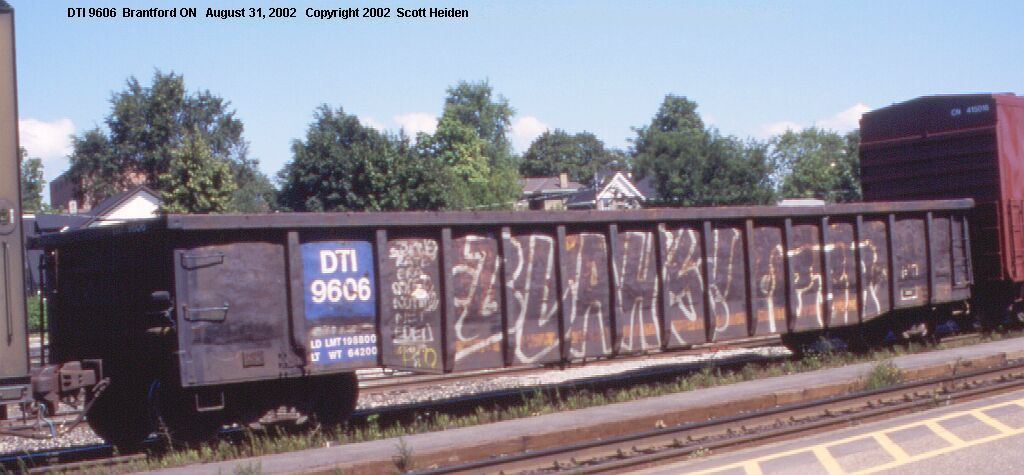

			DTI 9606 @ Brantford ON August 31, 2002 Copyright Scott Heiden		file size 85k

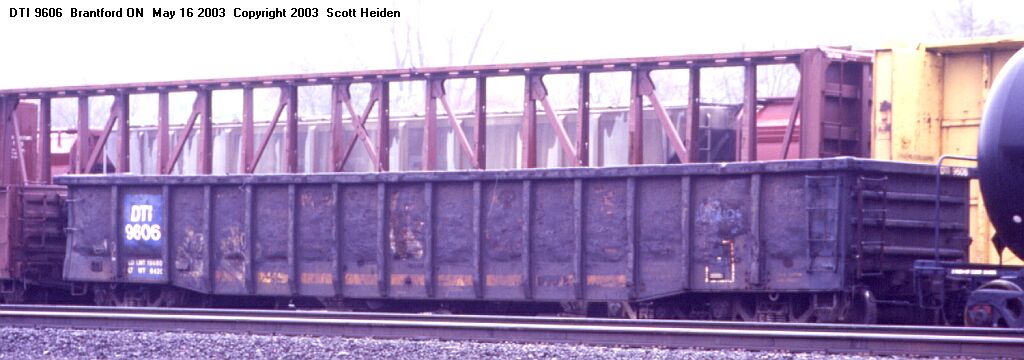

			DTI 9606 @ Brantford ON May 16, 2003 Copyright Scott Heiden		file size 70k

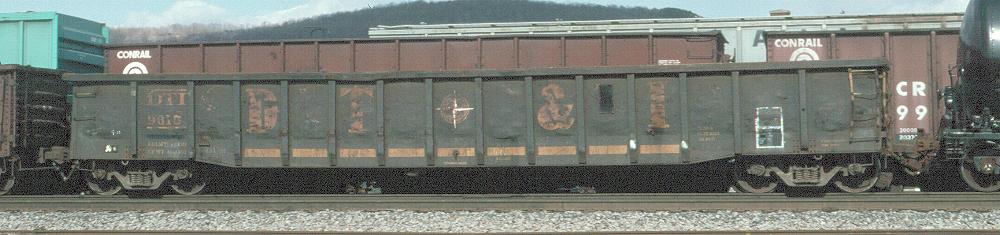

			DTI 9615 @ ? April 1990 From George Elwood's Fallen Flags		file size 52k

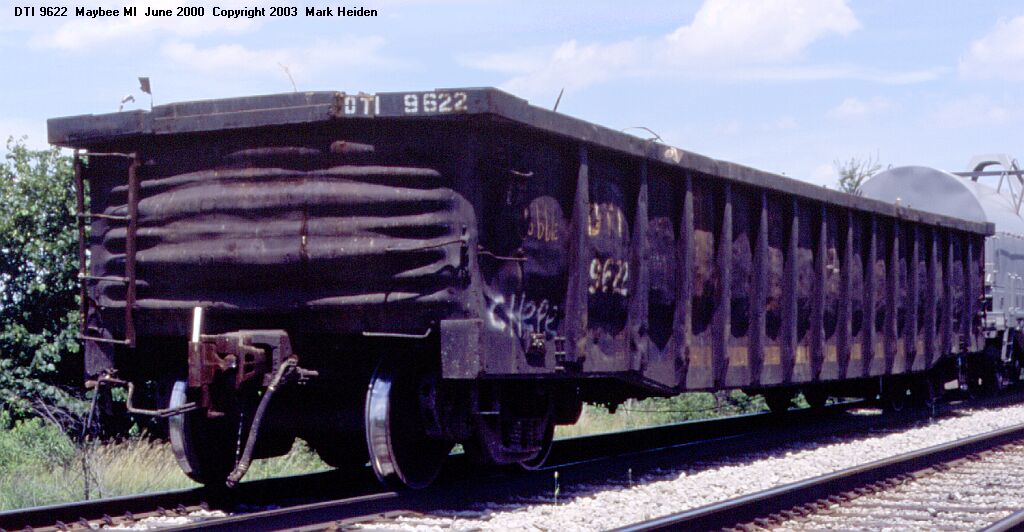

			DTI 9622 @ Maybee MI June 2000 A-end Copyright Mark Heiden		file size 105k

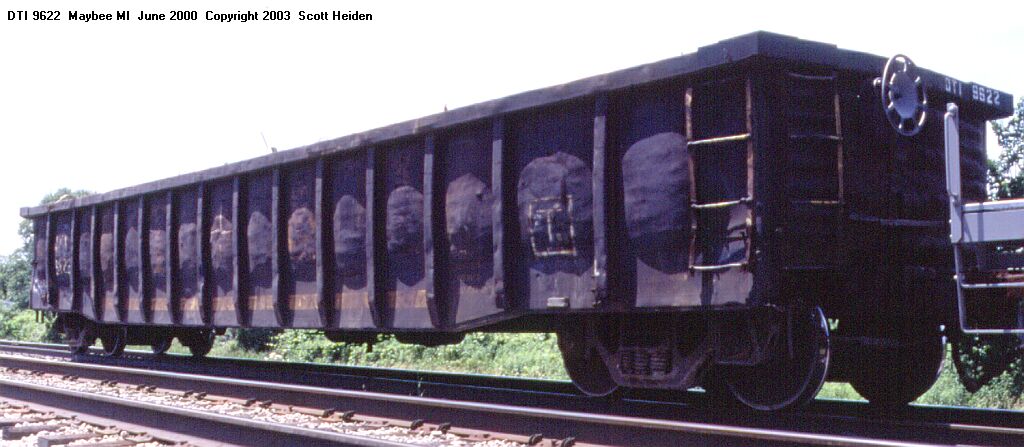

			DTI 9622 @ Maybee MI June 2000 B-end Copyright Mark Heiden		file size 90k

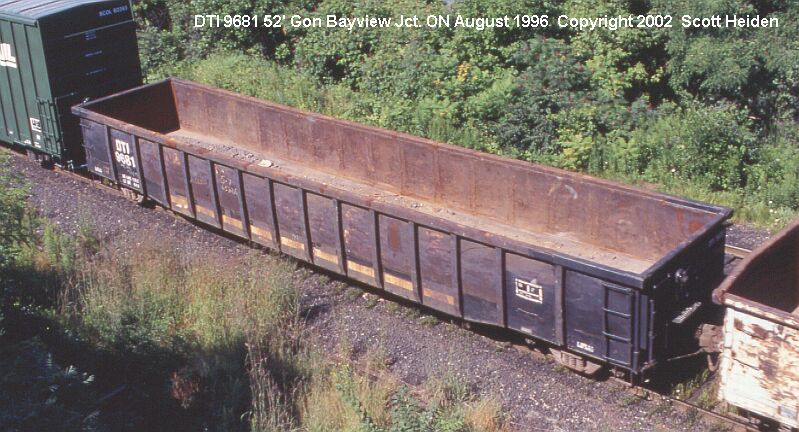

			DTI 9681 @ Bayview Jct., ON August 1996 Copyright Scott Heiden		file size 94k

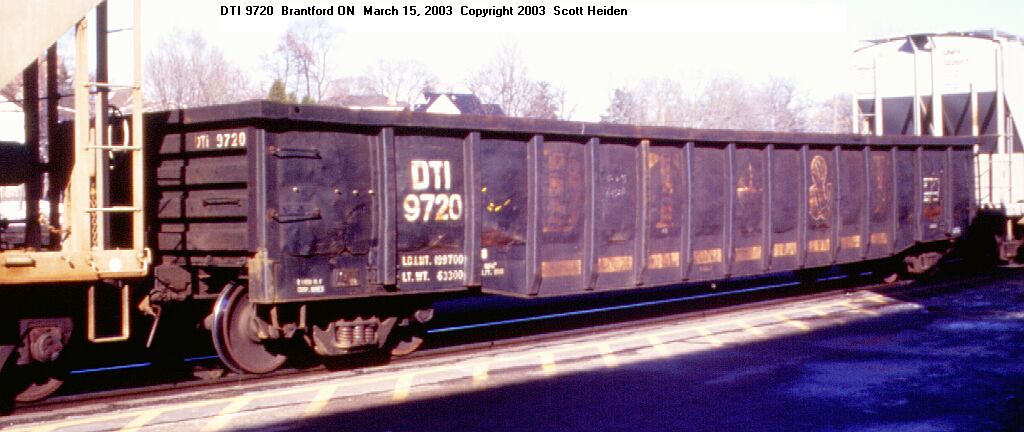

			DTI 9720 @ Brantford ON March 15, 2003 Copyright Scott Heiden		file size 84k

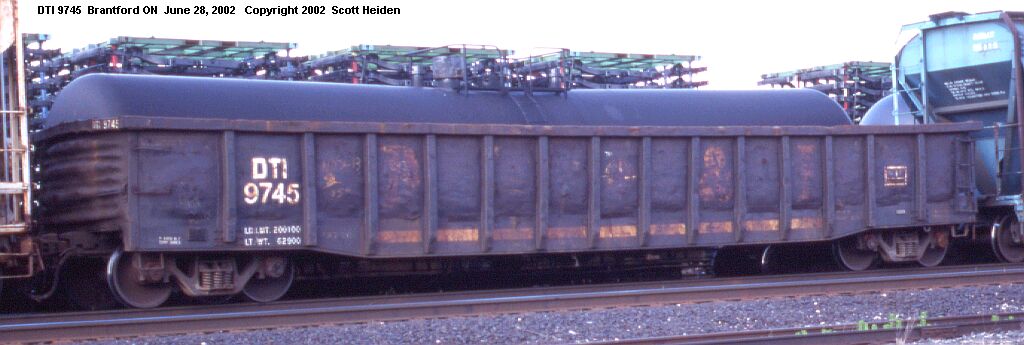

			DTI 9745 @ Brantford ON June 28, 2002 A-end Copyright Scott Heiden		file size 66k

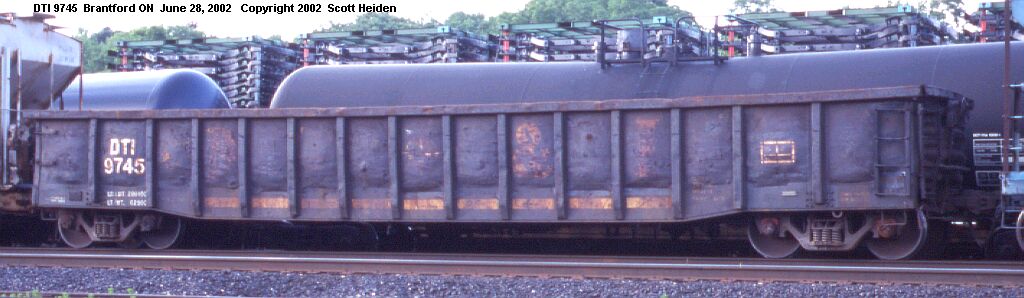

			DTI 9745 @ Brantford ON June 28, 2002 B-end Copyright Scott Heiden		file size 66k
			DTI 9748 @ Brantford ON June 2, 2002 Copyright Scott Heiden		file size 57k

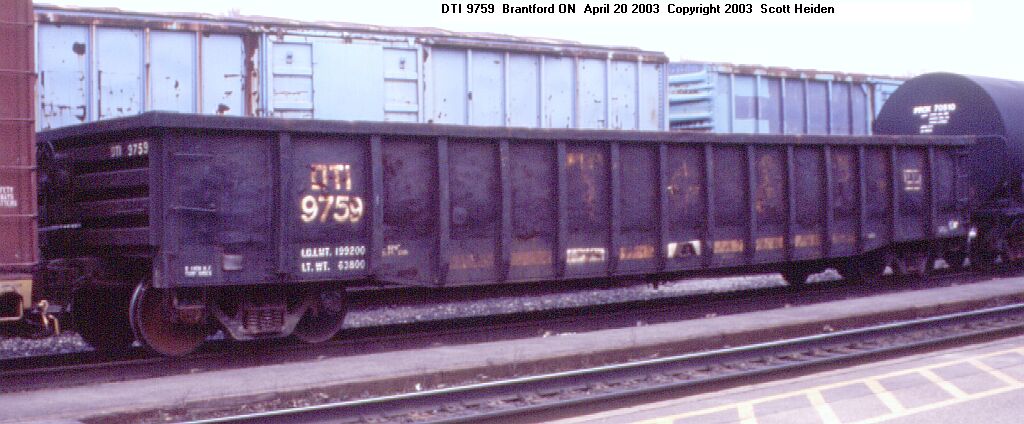

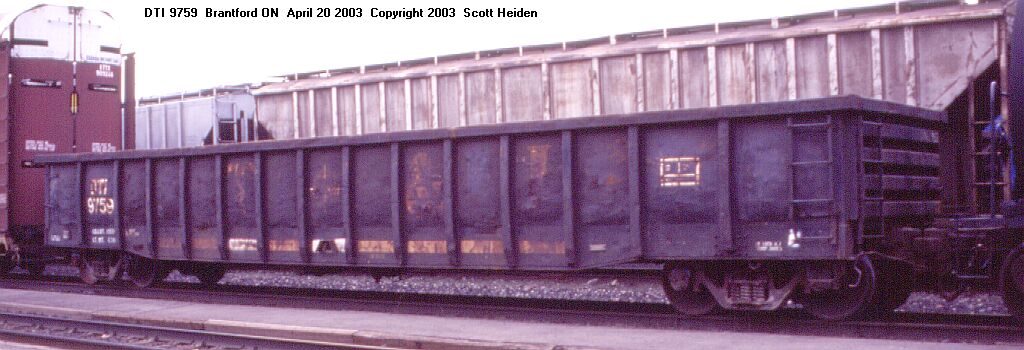

			DTI 9759 @ Brantford ON April 20, 2003 Copyright Scott Heiden		file size 94k
			DTI 9759 @ Brantford ON April 20, 2003 Copyright Scott Heiden		file size 84k

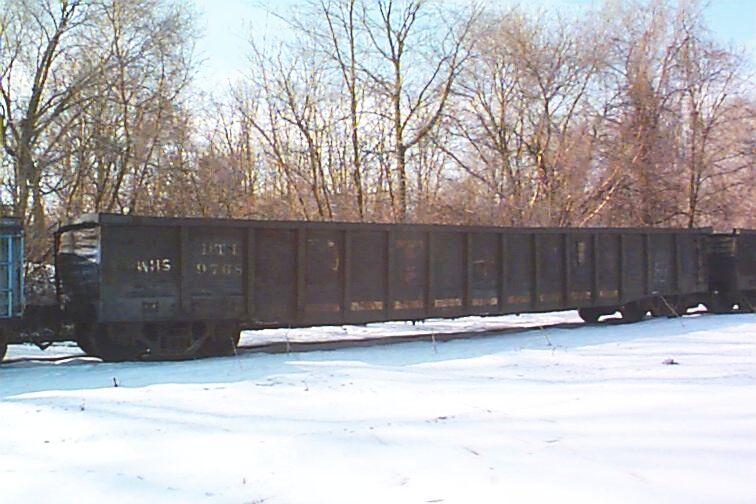

			DTI 9768 @ ? 1990's Collection of Brian Everett		file size 42k
			DTI 9768 @ Durand MI February 1998 R. DeClerg photo, Collection of Brian Everett		file size 71k

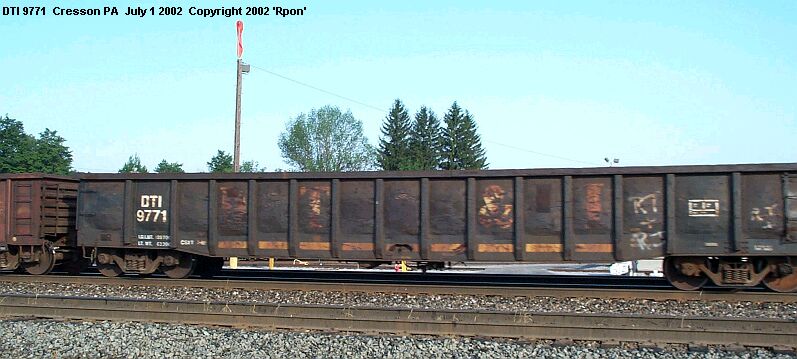

			DTI 9771 @ Cresson PA July 1, 2002 Copyright Rpon		file size 65k

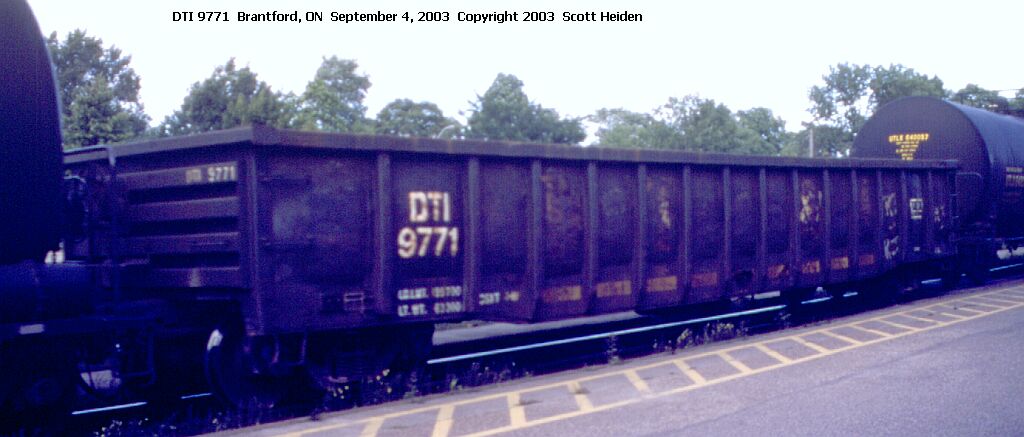

			DTI 9771 @ Brantford ON September 4, 2003 Copyright Scott Heiden		file size 75k

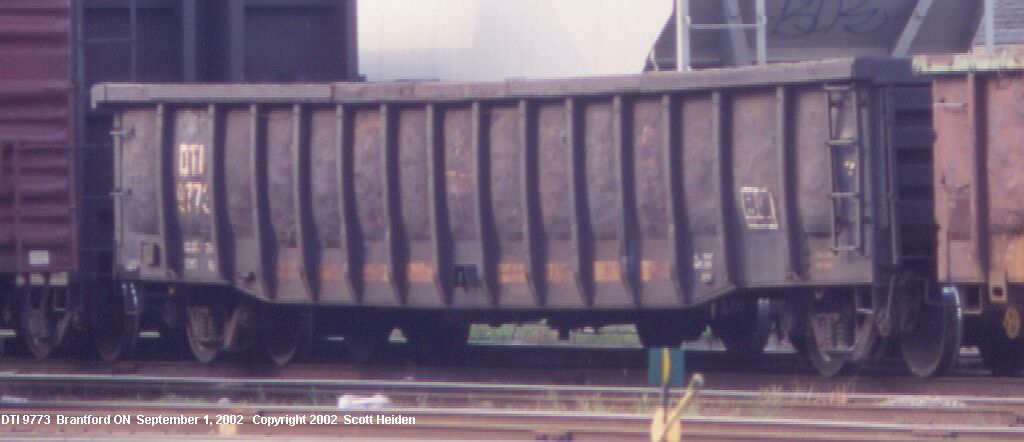

			DTI 9773 @ Brantford ON September 1, 2002 Copyright Scott Heiden		file size 59k
			CR 585034 (ex-DTI 9726) @ Brantford, ON June 22, 2003 Copyright Scott Heiden		file size 89k
