ACF 4600 Cu. Ft. Covered Hoppers
10300-10399


by permission with credit to original photographers and contributors

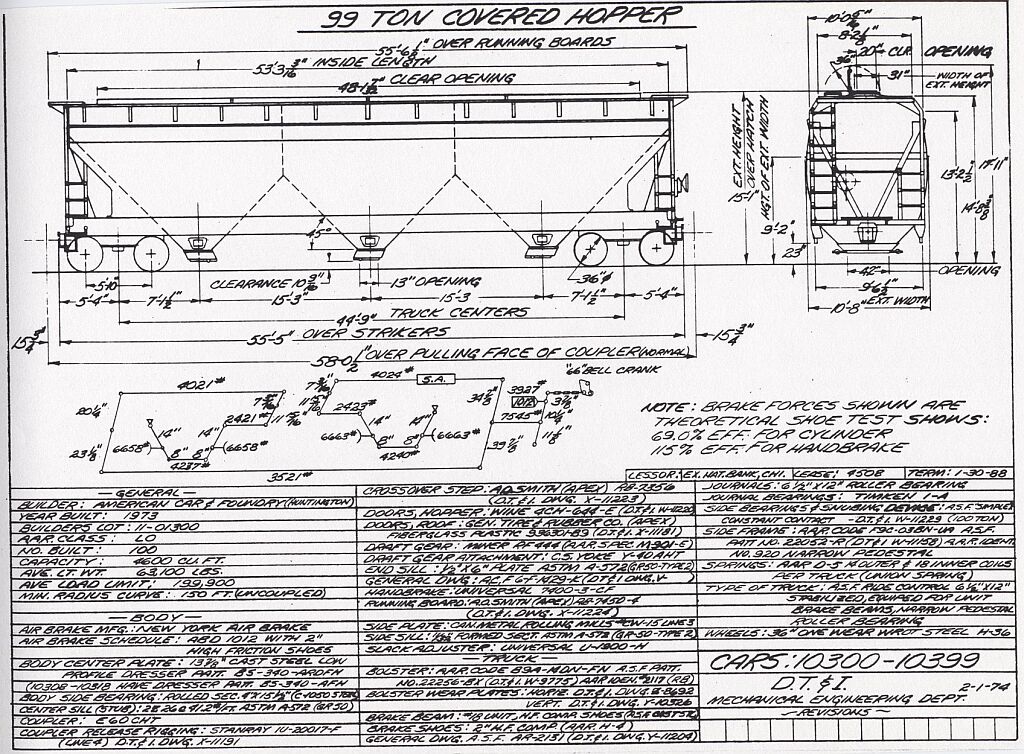

Equipment diagram courtesy Greg McDonnell

American Car & Foundry delivered 100 4600 cubic-foot covered hoppers to the DT&I in November 1973. They were painted grey-white and were used to carry grain.

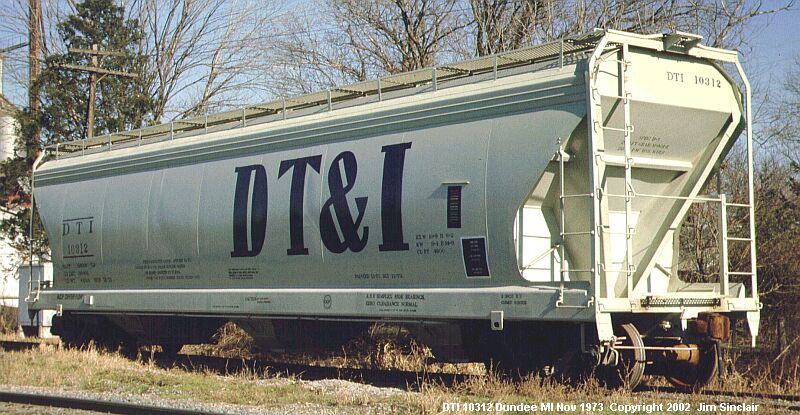

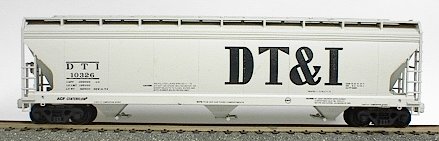

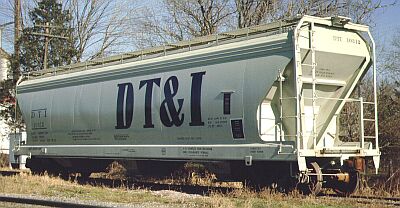

DTI 10312  Karner Elevator Siding, Dundee MI  Nov. 1973 Jim Sinclair sent me these photos of  brand-new ACF covered hopper DTI 10312. The car should look familiar; these photos were used to produce Herald King decal set H-112.   Accurail has revised the lettering on the #2028 DT&I ACF covered hopper - nice job!

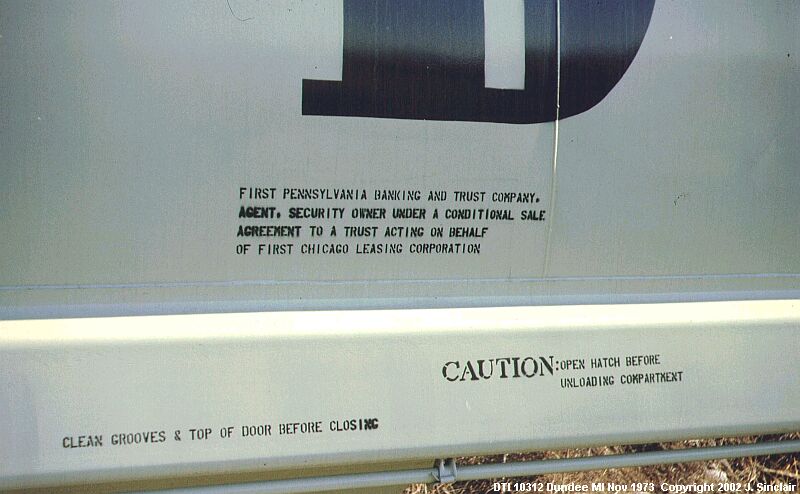

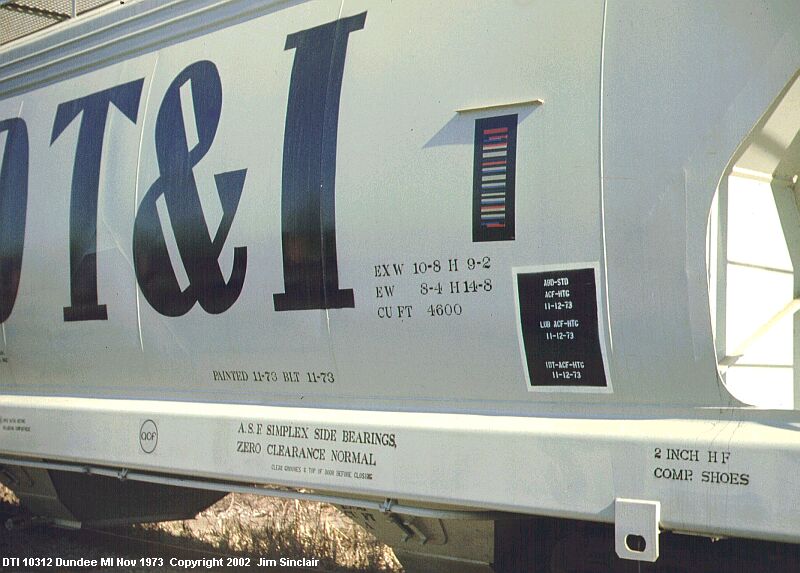

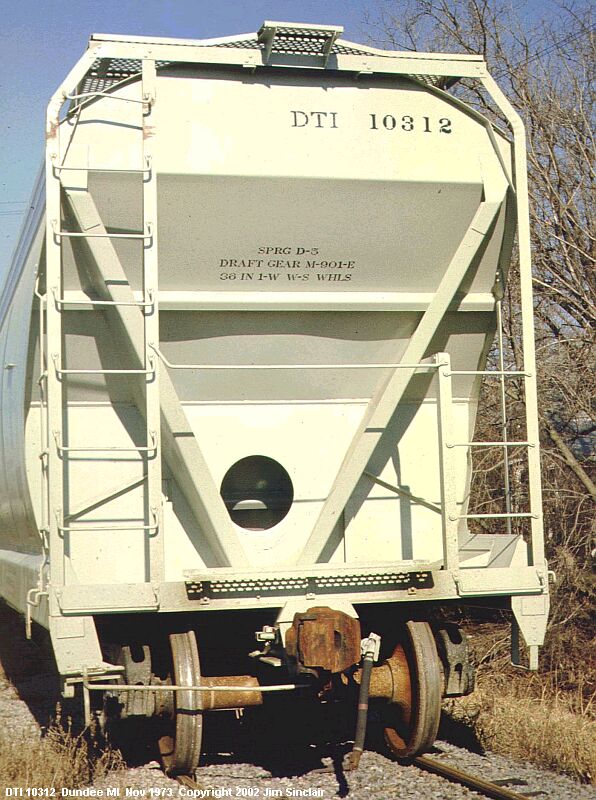

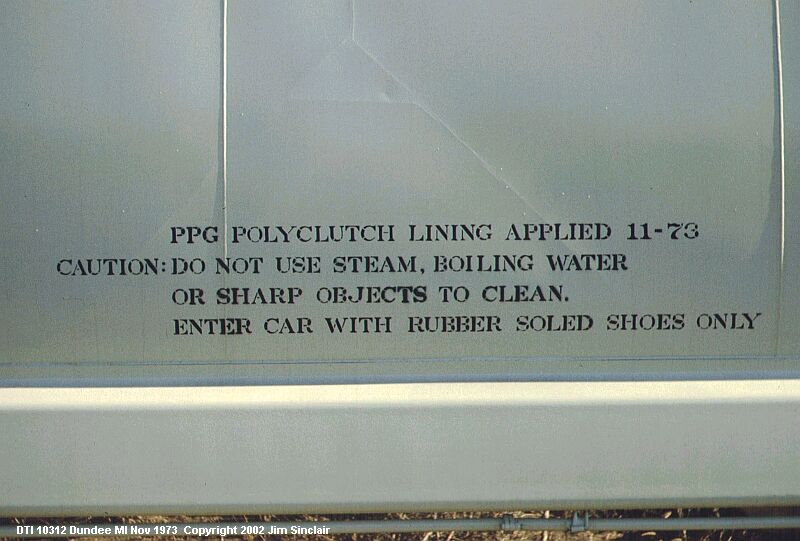

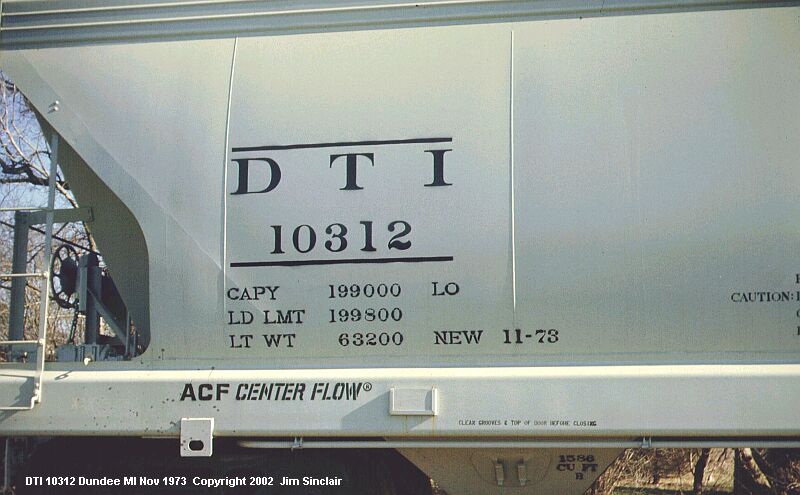

Detail Photos:   End View             ACI Label, Lube Plate, Dimension Info     Trust Co. Info, Loading  Instructions     Interior Lining Info     Reporting Marks, Cap'y Info

In the early 1990's these cars were released by Grand Trunk Western and sold to Helm Financial Corporation (HJVX). There are still a handful of these cars in service today still wearing their original DT&I paint.

			HJVX 10301 @ Danville KY  Early 1990's DjMikulec photo		file size 111k

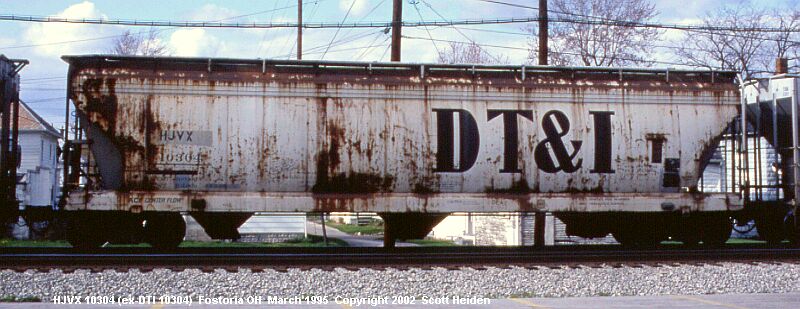

			HJVX 10304 @ Fostoria OH  March 1995 Copyright Scott Heiden		file size 71k

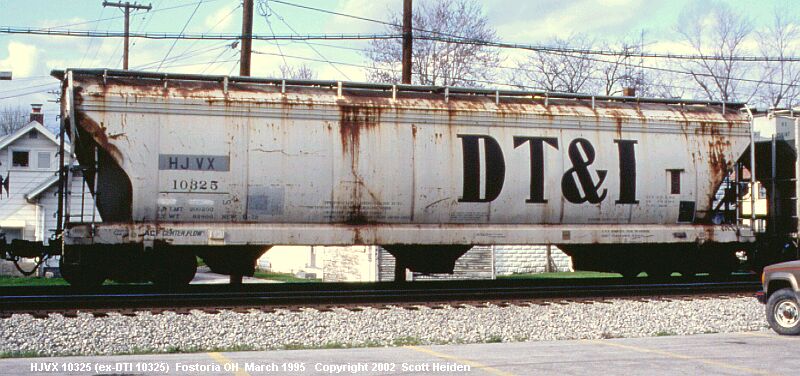

			HJVX 10325 @ Fostoria OH  March 1995 Copyright Scott Heiden		file size 81k

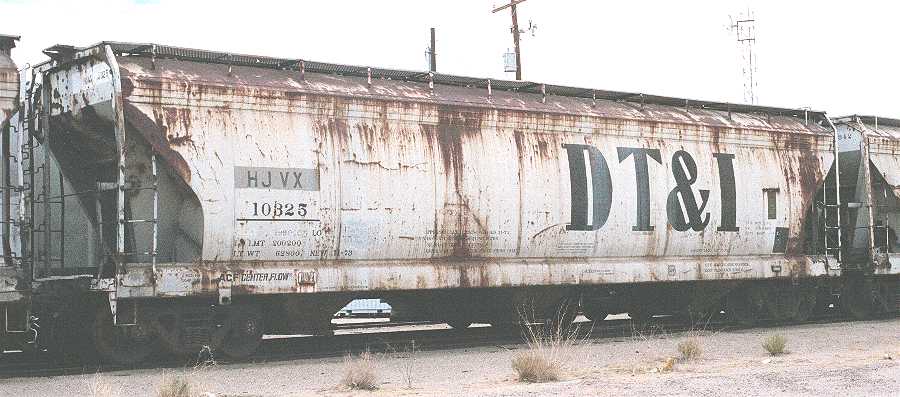

			HJVX 10325 @ Gila Bend AZ  May 2002 From George Elwood's Fallen Flags		file size 55k
			HJVX 10337 @ Danville KY  Early 1990's DjMikulec photo		file size 121k

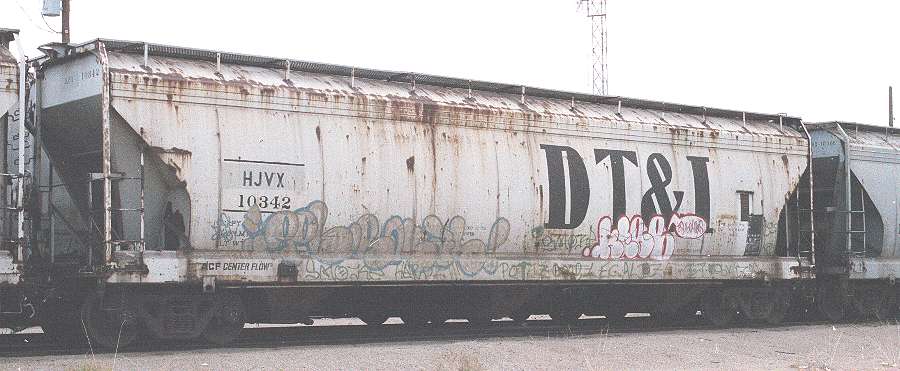

			HJVX 10342 @ Gila Bend AZ  May 2002 From George Elwood's Fallen Flags		file size 53k

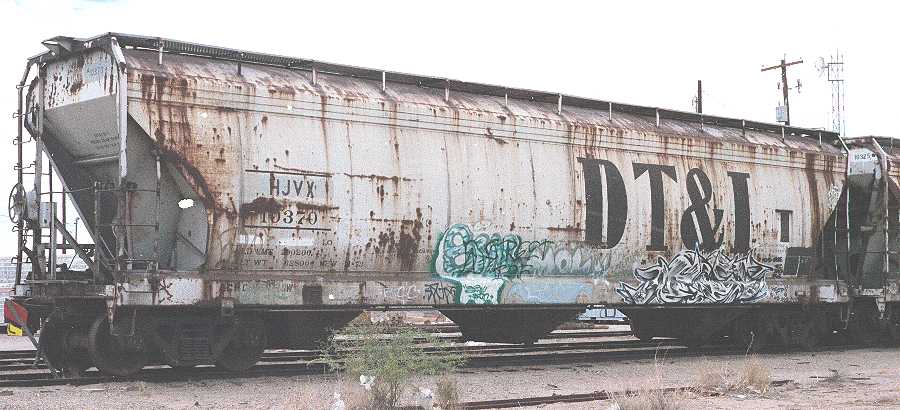

			HJVX 10370 @ Gila Bend AZ  May 2002 From George Elwood's Fallen Flags		file size 60k
			DT&I  10385 @ Buffalo NY 1974   Copyright S. Lamb		file size 34k
